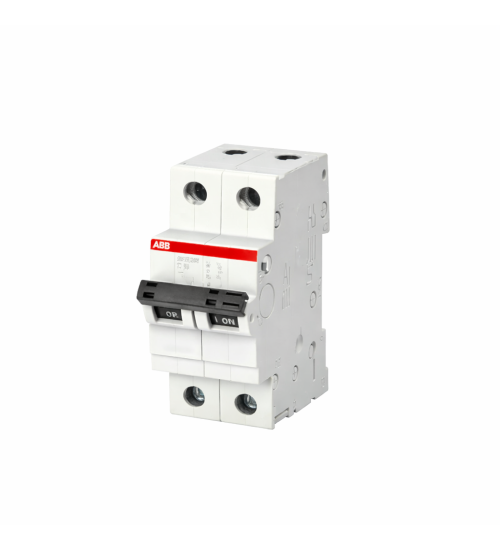

1SYS272012R0254 - SB202M-C25 Miniature Circuit Breaker - SB200M - 2P - 25 A - C - 10 kA | ABB

Product Overview

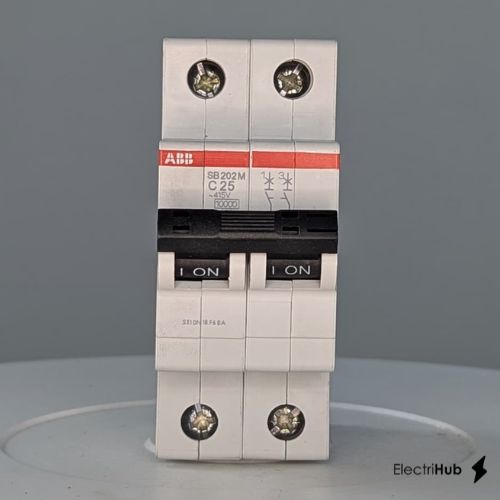

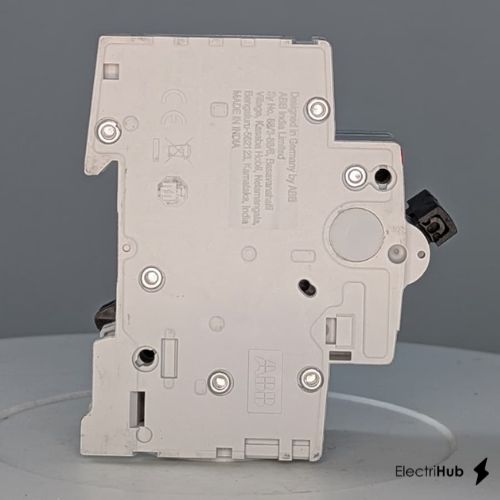

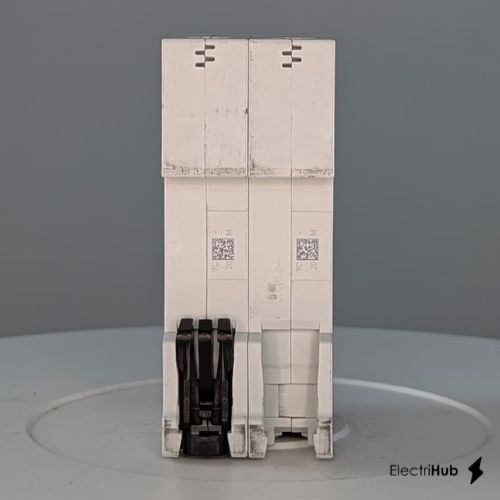

The ABB SB202M-C25 Miniature Circuit Breaker (MCB), product code 1SYS272012R0254, is a robust and reliable component from the System pro M compact SB200M series, available at Electrihub. Engineered for superior circuit protection, this 2-pole, 25 A, C-characteristic MCB offers a high breaking capacity of 10 kA at 240/415 V AC. It features advanced current-limiting capabilities and incorporates two distinct tripping mechanisms: a delayed thermal mechanism for effective overload protection and an electromechanical mechanism for rapid short-circuit protection. Compliant with IS/IEC 60898-1, the SB202M-C25 is designed to meet the rigorous demands of residential, commercial, and industrial electrical installations, ensuring safety and operational continuity.

Key Features

• Dual Tripping Mechanisms: Equipped with a delayed thermal trip for overload protection and an electromechanical trip for instantaneous short-circuit protection.
• Current Limiting Design: Minimizes the impact of fault currents, enhancing system safety and component longevity.
• High Breaking Capacity: Offers a robust 10 kA breaking capacity, suitable for demanding electrical environments.
• IS/IEC 60898-1 Compliance: Meets international standards for miniature circuit breakers, ensuring reliability and widespread applicability.
• 2-Pole Configuration: Provides comprehensive protection for two-wire circuits against overcurrents and short circuits.

Applications

• Residential electrical distribution boards and consumer units.
• Commercial building power circuits and lighting systems.
• Industrial control panels and machinery protection.
• HVAC systems and motor control circuits.
• General circuit protection in various electrical installations requiring high reliability.

Benefits

• Enhanced Electrical Safety: Provides reliable protection against overloads and short circuits, preventing damage to equipment and reducing fire hazards.
• Reduced Downtime: Rapid fault clearance minimizes interruptions to operations, ensuring continuous power supply.
• Versatile Application: Suitable for a broad range of residential, commercial, and industrial settings due to its robust design and compliance.
• Long-Term Reliability: Built to ABB's high-quality standards, ensuring durable performance and extended service life.
• Standardized Performance: Adherence to IS/IEC 60898-1 guarantees consistent and predictable protection characteristics.

Technical Specifications
