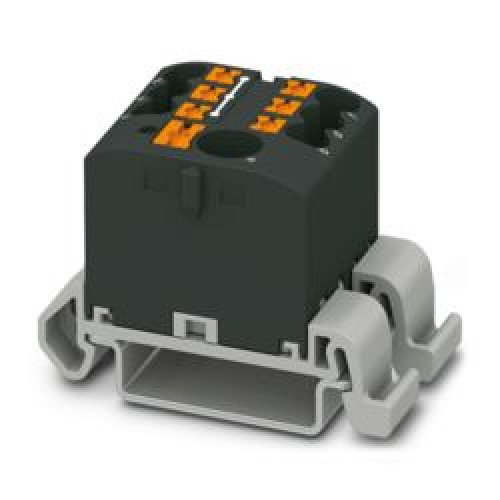

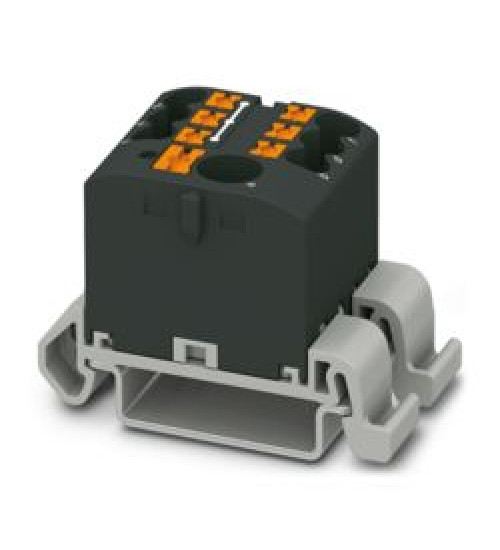

3273212 - PTFIX 6/6X2,5-NS35A BK - Distribution block - Phoenix Contact

Phoenix Contact 3273212 is a high-performance distribution block (PTFIX series) rated for operational voltages up to 450V–1000V AC/DC and nominal branch currents up to 24A–57A (line feed up to 76A–125A depending on configuration) according to IEC 60947-7-1 and UL 1059 standards.

The 3273212 distribution block features Push-in connection technology, allowing tool-free direct insertion of solid or ferruled stranded conductors from 0.14 mm² to 10 mm² (26-8 AWG). A standard release push-button allows easy conductor disconnection using any slotted screwdriver without damaging contact springs.

Phoenix Contact 3273212 supports versatile multi-position mounting: standard 35 mm DIN-rail mounting (horizontal and vertical), direct panel screw mounting via snap-in flanges, or self-adhesive backings for fast installation in confined control panels and distributed junction boxes.

Available in standardized industrial colors (gray, blue, red, yellow, green, black) to clearly differentiate DC potentials (+/-), AC phases (L1/L2/L3), neutral (N), and protective earth (PE). Pre-bridged internal busbars eliminate external jumper wires, saving up to 80% panel space and wiring time.

Yes, Electrihub stocks and delivers original Phoenix Contact 3273212 worldwide with full manufacturer compliance certificates, technical support, and competitive volume rates for panel builders and system integrators.
