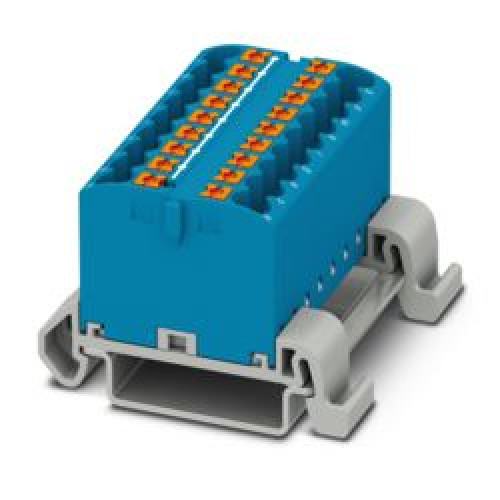

3273178 - PTFIX 18X2,5-NS35A BU - Distribution block - Phoenix Contact

Reference No. 3273178
Product Category Distribution block
Stock In Stock
Condition Brand New, Sealed Packaging

In Stock - 24 Qty

Quantity (Total: 24 Units) Estimated Delivery
24 Units Oct 20 - Oct 22

Reach out to us for project inquiries, Add to cart and click on send inquiry

Qty.

Currently viewed by 7 users
⚠ Delivery Advisory Estimated delivery timelines may vary due to global logistics constraints and airspace restrictions. Final confirmation will be provided after order processing.
Secure Payment with
Secure international payment methods accepted worldwide including Visa, Mastercard, PayPal and bank transfer

Need help on inquiry? Call on +1 (888) 293-7436

Delivery Van
Warranty 12 Months
Delivery Van
100% Original Products
Delivery Van
100% Buyer Protection
Delivery Van
World Wide Reach

Technical Documents

Download 3273178 data sheet

Technical Specification

Phoenix Contact 3273178 Distribution block Technical Specification
Distribution block
Nominal current 24A
Nominal Voltage 690V
Number of connections 18

Product Details

3273178 - PTFIX 18X2,5-NS35A BU - Distribution block - Phoenix Contact

Product Description

Phoenix Contact 3273178 - Distribution block, Block with horizontal alignment, nom. voltage: 690 V, nominal current: 24 A, number of connections: 18, connection method: Push-in connection, cross section: 0.14 mm2 - 4 mm2, mounting type: NS 35/7,5, NS 35/15, color: blue. Electrihub represents a commitment to ... View More
No Data
No Data
No Data
No Data
No Data

Product Overview

The Phoenix Contact PTFIX 18X2,5-NS35A BU distribution block, identified by product code 3273178, is a high-performance solution designed for efficient and reliable power distribution within industrial electrical systems. This blue distribution block features a horizontal alignment, optimizing space and simplifying wiring in control cabinets and other demanding applications. Leveraging Phoenix Contact's renowned Push-in connection technology, it ensures quick, secure, and tool-free conductor termination, making it an essential component for modern industrial automation and panel building.

Key Features

  • Push-in Connection Technology: Enables rapid, tool-free wiring for conductors ranging from 0.14 mm² to 4 mm², significantly reducing installation time.
  • High Connection Density: Provides 18 individual connections, allowing for compact and organized power distribution.
  • Robust Electrical Ratings: Engineered for a nominal voltage of 690 V and a nominal current of 24 A, suitable for diverse industrial power requirements.
  • Horizontal Alignment: Optimized block orientation for space-saving installation and improved accessibility in tight enclosures.
  • DIN Rail Mountable: Compatible with standard NS 35/7,5 and NS 35/15 DIN rails, ensuring versatile and secure mounting.

Applications

  • Control cabinet wiring and power distribution
  • Industrial automation systems
  • Machine building and equipment manufacturing
  • Panel building and electrical enclosure installations
  • Signal distribution in complex electrical circuits

Benefits

  • Enhanced Wiring Efficiency: Push-in technology streamlines the wiring process, minimizing labor costs and project timelines.
  • Space Optimization: The compact design and horizontal alignment maximize available space within electrical panels.
  • Reliable and Secure Connections: Provides vibration-resistant and gas-tight connections, ensuring long-term operational stability.
  • Versatile Conductor Compatibility: Accommodates a broad range of conductor cross-sections, offering flexibility for various wiring needs.
  • Simplified Installation: Easy mounting on standard DIN rails facilitates quick and straightforward integration into existing setups.

Technical Specifications

Product Code 3273178
Brand Phoenix Contact
Product Type Distribution Block
Nominal Voltage 690 V
Nominal Current 24 A
Number of Connections 18
Connection Method Push-in connection
Conductor Cross Section 0.14 mm² - 4 mm²
Mounting Type NS 35/7,5, NS 35/15
Color Blue
Alignment Horizontal

Frequently Asked Questions for 3273178 Distribution block

Phoenix Contact 3273178 is a high-performance distribution block (PTFIX series) rated for operational voltages up to 450V–1000V AC/DC and nominal branch currents up to 24A–57A (line feed up to 76A–125A depending on configuration) according to IEC 60947-7-1 and UL 1059 standards.

The 3273178 distribution block features Push-in connection technology, allowing tool-free direct insertion of solid or ferruled stranded conductors from 0.14 mm² to 10 mm² (26-8 AWG). A standard release push-button allows easy conductor disconnection using any slotted screwdriver without damaging contact springs.

Phoenix Contact 3273178 supports versatile multi-position mounting: standard 35 mm DIN-rail mounting (horizontal and vertical), direct panel screw mounting via snap-in flanges, or self-adhesive backings for fast installation in confined control panels and distributed junction boxes.

Available in standardized industrial colors (gray, blue, red, yellow, green, black) to clearly differentiate DC potentials (+/-), AC phases (L1/L2/L3), neutral (N), and protective earth (PE). Pre-bridged internal busbars eliminate external jumper wires, saving up to 80% panel space and wiring time.

Yes, Electrihub stocks and delivers original Phoenix Contact 3273178 worldwide with full manufacturer compliance certificates, technical support, and competitive volume rates for panel builders and system integrators.
