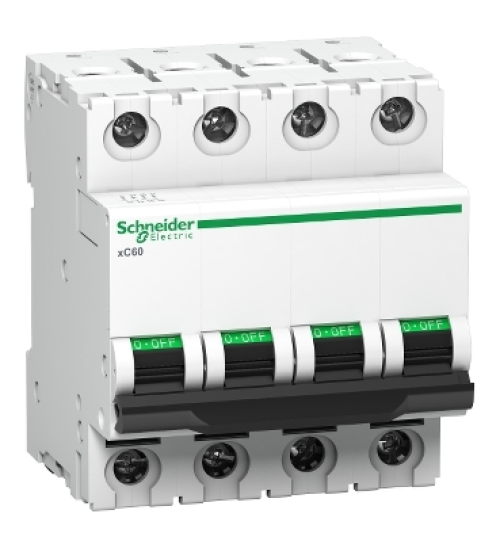

A9N4P06CGN - Miniature circuit breaker (MCB), Acti9 xC60, 4P, 6A, C curve, 10000A (IS/IEC60898-1) - Schneider Electric

Product Overview

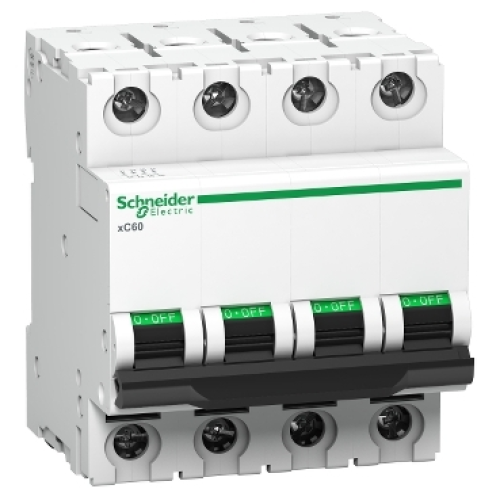

The Schneider Electric A9N4P06CGN Acti9 xC60 Miniature Circuit Breaker (MCB), available at Electrihub, is a robust low voltage biconnect device engineered for superior circuit protection. This 4-pole MCB features a 6A rated current with a C tripping curve, making it ideal for a wide range of industrial and commercial applications. Conforming to IS/IEC 60898-1 standards, it boasts an impressive short-circuit breaking capacity of 10000A at 380-415VAC. Designed to safeguard electrical circuits against both short-circuit and overload currents, the A9N4P06CGN incorporates a distinctive green strip, providing a clear visual indication of physical contact opening for enhanced operational safety. Its DIN rail mountable design ensures straightforward integration into modular electrical installations.

Key Features

• 4-Pole Configuration: Provides comprehensive protection with 4 protected poles, a 6A rated current, and a C tripping curve.
• High Breaking Capacity: Delivers reliable interruption with a 10000A short-circuit breaking capacity at 380-415VAC, compliant with IS/IEC 60898-1.

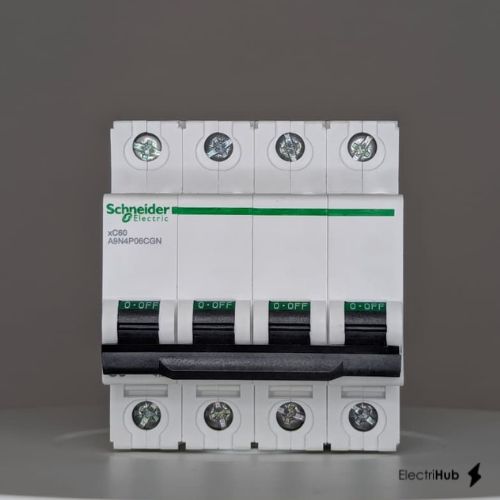

• VisiSafe Indicator: Features a green strip that guarantees physical opening of contacts, enabling safe intervention on downstream circuits.
• Robust Durability: Engineered for longevity with mechanical and electrical durability extending up to 20,000 operating cycles.

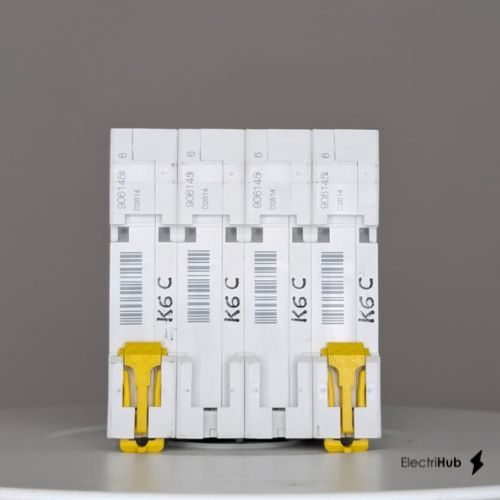

• DIN Rail Mountable: Facilitates quick and secure installation in standard modular enclosures, optimizing space and setup time.

Applications

• Protection of final circuits in industrial and commercial buildings.
• Overload and short-circuit protection for control panels and machinery.
• Integration into electrical distribution boards for various load types.
• Safeguarding lighting, heating, and power circuits in demanding environments.
• Use in residential and light commercial installations requiring robust circuit protection.

Benefits

• Enhanced Operational Safety: The VisiSafe feature provides a clear visual confirmation of contact status, ensuring personnel safety during maintenance.
• Reliable Circuit Protection: Effectively prevents damage to electrical equipment and wiring from overcurrents and short circuits, minimizing downtime.
• Long-Term Performance: High mechanical and electrical endurance reduces the need for frequent replacements, contributing to lower total cost of ownership.
• Simplified Installation: Designed for easy DIN rail mounting, allowing for efficient and flexible integration into existing electrical systems.
• Standards Compliance: Adherence to IS/IEC 60898-1 ensures a high level of performance, reliability, and regulatory compliance.

Technical Specifications
