What is an ABB MCB 3 Pole?

An ABB MCB 3 Pole (Miniature Circuit Breaker, 3-pole) is a DIN rail mounted protective device from ABB's System pro M compact range that simultaneously switches and protects all three phase conductors (L1, L2, L3) of a three-phase electrical circuit in a single compact 54mm-wide (3 × 18mm) device. Unlike a single-pole MCB, which protects only one phase conductor, the ABB 3P MCB opens all three phase poles simultaneously on overcurrent, short-circuit, or manual switching — ensuring no three-phase load remains energised on a partial phase supply after the MCB operates. The ABB 3 Pole MCB is available in the S200 (6kA), S200M (10kA), and S200P (15kA–25kA) series across current ratings from 0.5A to 63A with B, C, and D trip curves — covering every three-phase final circuit, sub-main, incomer, and motor feeder protection application in residential, commercial, and industrial distribution boards. When you buy ABB MCB 3 Pole from ElectriHub, you receive 100% genuine ABB products with IEC 60898-1 / IEC 60947-2 certification, manufacturer warranty, and BIS approval for Indian market compliance.

When Do You Need an ABB MCB 3 Pole? — Key Applications

The ABB 3P MCB is the standard circuit protection device for the following three-phase applications in Indian and international installations:

• Three-Phase Distribution Board Incomers (TN-C-S Systems): The most common application for the ABB MCB 3 Pole C Curve in Indian commercial and industrial projects is as the incomer circuit breaker for three-phase distribution boards on TN-C-S (PME) supplies — the standard earthing arrangement for most urban commercial and industrial premises in India. Under TN-C-S, the neutral must not be switched at the distribution board incomer — a 3-pole MCB is the correct specification. The ABB S203M-C range (10kA, C curve) in ratings from 16A to 63A is the standard ABB 3P MCB series for this application. At 63A, the ABB S203M-C63 is the single most ordered ABB 3-pole MCB configuration for Indian commercial distribution board incomers
• Three-Phase Sub-Main Feeders: Three-phase sub-main cables from a main LV switchboard or main distribution board to floor distribution boards, department sub-boards, and secondary panels are protected by an ABB 3 Pole MCB sized to the sub-main cable ampacity and calculated sub-main maximum demand. The ABB S203M C curve in ratings from 16A to 63A covers three-phase sub-main feeders from small secondary boards (16A–32A) through to medium commercial floor sub-mains (40A–63A). For large commercial buildings close to the HV/LV transformer where the PSCC at the main distribution board exceeds 10kA, the ABB S203P C curve at 25kA is the correct specification
• Three-Phase DOL Motor Feeder Short-Circuit Protection: The ABB 3 Pole MCB D Curve (S203M D curve) is the standard short-circuit protective device for three-phase direct-on-line motor feeders in industrial MCC panels, commercial building services distribution boards, and packaged plant control panels. D curve 3-pole ABB MCBs are specified in ratings from 10A (1.5kW motor) through 63A (15kW motor) — with the S203M-D32 (7.5kW motor feeder) being the single most ordered ABB 3P D curve MCB for Indian industrial and commercial MCC applications. The ABB 3P MCB provides short-circuit protection for the motor feeder cable only — a separate overload relay in the DOL starter provides motor winding overload protection
• Three-Phase HVAC and Building Services Circuits: Commercial and industrial HVAC plant — chiller units, air handling units (AHUs), cooling towers, packaged rooftop units, and fan coil unit three-phase supplies — is protected by an ABB 3 Pole MCB in C curve (for variable-speed drives and electronic soft starters with controlled starting currents) or D curve (for direct DOL-started HVAC compressors and fans with high starting inrush). The ABB S203M range in ratings from 10A to 63A covers the full spectrum of commercial HVAC three-phase supply circuit protection
• Three-Phase Process and Industrial Equipment: Industrial process equipment — three-phase resistance heating elements, three-phase welding machine supply circuits, three-phase industrial ovens and furnaces, and three-phase packaging and conveyor machine supply circuits — is protected by an ABB 3P MCB selected for the equipment's rated current, starting characteristic, and cable ampacity. C curve for resistive heating loads; D curve for inductive and motor-driven process equipment with high starting inrush
• Three-Phase Motor Control Centre (MCC) Outgoing Feeders: In motor control centres serving commercial building services plant and industrial facilities, each outgoing motor feeder is protected by an ABB 3P MCB D Curve — typically S203M D curve at the rating matching the motor feeder cable ampacity. ElectriHub can supply complete MCC outgoing feeder MCB sets matched to a motor schedule — ABB S203M D curve in all required ratings from 10A to 63A — for complete MCC builds
• International Export Projects (IEC-Standard Three-Phase Circuits): Indian EPC firms and panel builders supplying three-phase distribution boards, MCCs, and switchgear assemblies for projects in the Middle East, Southeast Asia, Africa, and Europe specify the ABB 3 Pole MCB S200M and S200P series for all three-phase three-wire circuit protection applications on IEC-standard installations. The ABB S203 range complies with IEC 60898-1 and IEC 60947-2 and is globally accepted as a specification-grade modular three-phase MCB

ABB 3P MCB — S200 vs S200M vs S200P: Which Series to Specify

Selecting the correct series within the ABB MCB 3 Pole range is determined by the prospective short-circuit current (PSCC) at the point of installation:

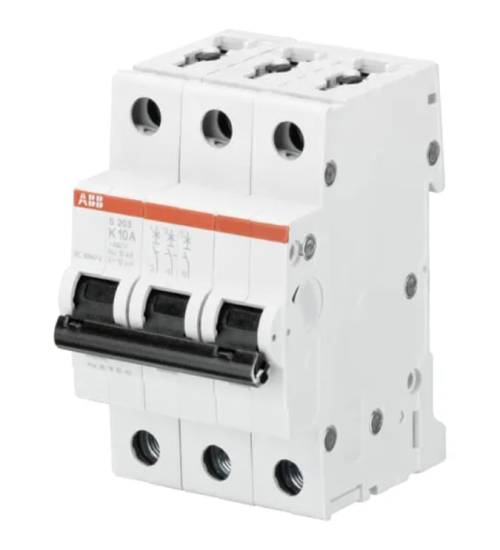

• ABB S203 (S200, 6kA): For three-phase MCB applications where the PSCC at the MCB installation point has been formally calculated and confirmed at or below 6kA. Dual-rated under IEC 60898-1 and IEC 60947-2. Typical for three-phase MCBs at the end of long LV cable runs from the HV/LV transformer, in small light commercial premises with a verified low fault level, and for outgoing three-phase final circuit MCBs in residential-classified distribution boards. Never specify the S203 (6kA) for a commercial or industrial distribution board incomer in an urban Indian premise without a verified PSCC calculation
• ABB S203M (S200M, 10kA): The recommended safe-default for all ABB 3P MCB applications in commercial buildings, industrial facilities, multi-storey residential blocks, and any installation where PSCC has not been formally verified. The S203M at 10kA covers the great majority of three-phase distribution board incomer and sub-main locations in Indian cities and the Middle East, where utility fault levels typically produce distribution board PSCCs of 6–10kA. For any commercial or industrial three-phase MCB application where PSCC is unverified, specify the S203M — the modest additional cost provides a significantly higher safety margin and is the correct professional default
• ABB S203P (S200P, 15kA/25kA): Required for three-phase MCBs in main distribution boards, sub-main circuit breakers, and industrial incomer applications close to large HV/LV transformers or main LV switchboards where PSCC calculations confirm fault levels above 10kA. At 25kA, the S203P is the maximum breaking capacity in the ABB modular MCB range — above 25kA, ABB Tmax MCCB devices are specified

ABB 3P MCB — C Curve vs D Curve: How to Choose

The trip curve selection for an ABB MCB 3 Pole depends on the starting and inrush current characteristics of the connected three-phase load:

• C Curve (5–10× In): Standard specification for three-phase distribution board incomers, sub-main feeders, balanced three-phase final circuits, VFD-fed motor circuits, three-phase HVAC circuits with electronic starting, and all three-phase applications where the load starting current does not exceed 10× the MCB rated current. The C curve is the correct default for all three-phase distribution protection applications — specify C curve unless the load type specifically demands D curve
• D Curve (10–20× In): Specified for three-phase DOL motor feeders where the motor starting inrush current (typically 5–8× FLC, corresponding to 10–16× the MCB rated current when the MCB is rated to cable ampacity) approaches or exceeds the C curve's upper instantaneous trip threshold, and for three-phase transformer primary protection and high-inrush inductive load supply circuits. The D curve is the correct specification for MCC outgoing motor feeder MCBs — never upsize the MCB current rating to avoid nuisance tripping with a C curve, as this leaves the cable unprotected against overload
• B Curve (3–5× In): For three-phase resistive load circuits and three-phase circuits at the end of long cable runs with reduced available fault current. Less commonly specified than C curve at three-phase level but important for long cable run protection engineering and certain three-phase resistive industrial heating circuit applications

ABB 3P MCB vs ABB 4P MCB — When to Use Each

The decision between a 3-pole ABB MCB and a 4-pole ABB MCB at the distribution board incomer level depends on the supply earthing system:

• Use ABB 3P MCB when: The supply earthing system is TN-C-S (PME) — the standard arrangement for most urban commercial and industrial premises in India supplied by the local distribution company. Under TN-C-S, the neutral is bonded to earth at the distribution board main earthing terminal and must not be switched — a 3-pole MCB is correct for TN-C-S system incomers. Also correct for all three-phase three-wire (no neutral) circuit protection regardless of earthing system
• Use ABB 4P MCB when: The supply earthing system is TN-S or TT (separate neutral and earth throughout), where neutral isolation at the incomer is required by system design or regulation. Also required for all generator and ATS panel incomer circuits (to prevent neutral circulating current issues at the transfer switch), and for international export projects in Europe and the Middle East where local regulations mandate neutral isolation at the distribution board incomer. Always confirm the earthing system with a qualified electrical engineer before specifying pole configuration

ABB 3P MCB Part Number Structure

The ABB MCB 3 Pole part number follows the ABB System pro M compact convention: S203[series suffix]-[curve][rating]. The catalogue prefix is always S203 for three-pole devices. Series suffix: no suffix = S200 (6kA); M = S200M (10kA); P = S200P (15kA/25kA). Curve: B, C, or D. Rating: the current rating in amps. Examples: S203-C32 = S200, 3-pole, C curve, 32A, 6kA; S203M-C63 = S200M, 3-pole, C curve, 63A, 10kA; S203M-D32 = S200M, 3-pole, D curve, 32A, 10kA (most ordered ABB 3P MCB for 7.5kW DOL motor feeders in India); S203P-C63 = S200P, 3-pole, C curve, 63A, 25kA. Always verify the exact part number and confirm current stock with ElectriHub's technical team before ordering.

Buy ABB MCB 3 Pole Online from ElectriHub

ElectriHub is your trusted one-stop platform to buy ABB MCB 3 Pole online — the complete S200, S200M, and S200P three-pole range across every current rating from 0.5A to 63A, B, C, and D trip curves, and 6kA, 10kA, 15kA, and 25kA breaking capacities, along with the full System pro M compact accessory range: OF auxiliary contacts for distribution board status monitoring, SH shunt releases for remote trip from fire alarm and ATS controllers, UVR undervoltage releases for generator incomer anti-restart protection, lockable rotary handle kits for LOTO isolation, 3-pole comb busbars for three-phase board assembly, and terminal covers for IP compliance. We supply 100% genuine ABB products with IEC certification, manufacturer warranty, BIS approval, competitive pricing for single units and bulk project orders, fast worldwide shipping with export documentation, and free pre-sales technical support. Whether you need a single replacement ABB 3P MCB or the complete BOM for a three-phase commercial distribution board or industrial MCC — ElectriHub is your preferred source for ABB 3 Pole MCB online.

Why Buy ABB 3P MCB from ElectriHub?

• ✓ Complete ABB MCB 3 Pole range — S200, S200M, and S200P in all current ratings from 0.5A to 63A, all trip curves (B, C, D), at 6kA, 10kA, 15kA, and 25kA breaking capacities
• ✓ Full System pro M compact accessory range — OF auxiliary contacts, SH shunt releases, UVR undervoltage releases, lockable rotary handles, padlock kits, 3P comb busbars, and terminal covers
• ✓ 100% genuine ABB products with IEC 60898-1 / IEC 60947-2 certification and manufacturer warranty
• ✓ BIS-certified ABB 3-pole MCBs for Indian market compliance
• ✓ Competitive pricing with volume discounts for panel builders, EPC contractors, MCC fabricators, and switchgear manufacturers
• ✓ Complete distribution board and MCC MCB sets — matched to load schedule, motor schedule, earthing system, and PSCC on request
• ✓ Worldwide shipping with full tracking and export documentation for Indian and international project orders
• ✓ Free technical pre-sales support — S200 vs S200M vs S200P selection, C vs D curve guidance, PSCC-based breaking capacity verification, and 3P vs 4P pole configuration advice
• ✓ Fast dispatch from our global warehouse — urgent orders dispatched same or next business day
• ✓ Dedicated account managers for EPC firms, panel builders, MCC fabricators, switchgear manufacturers, and project orders

Frequently Asked Questions

Q: What is the most commonly ordered ABB MCB 3 Pole in India?

The highest-volume ABB MCB 3 Pole ordered through ElectriHub for Indian projects is the ABB S203M-C63 (3-pole, C curve, 63A, 10kA) — used as the incomer MCB for three-phase distribution boards in commercial offices, retail complexes, light industrial facilities, and multi-storey residential blocks on TN-C-S supplies. For MCC motor feeder applications, the ABB S203M-D32 (3-pole, D curve, 32A, 10kA) is the most ordered D curve variant — covering the 7.5kW DOL motor feeder application that is the most common motor size in Indian commercial building services plant. The ABB S203M-C32 (3-pole, C curve, 32A, 10kA) is the most ordered sub-main and outgoing three-phase circuit MCB across commercial and industrial projects. Contact ElectriHub to confirm stock availability and lead times for your specific part numbers and quantities.

Q: What is the difference between ABB S203-C32, S203M-C32, and S203P-C32?

All three are ABB 3 Pole MCB C Curve 32A devices — the only difference is breaking capacity. The S203-C32 is rated 6kA and is dual-rated under IEC 60898-1 and IEC 60947-2. The S203M-C32 is rated 10kA under IEC 60947-2. The S203P-C32 is rated 25kA under IEC 60947-2. All three have the same C curve instantaneous trip characteristic (5–10× In), the same 32A thermal rating, and full System pro M compact accessory compatibility. Select based on PSCC: S203 for verified low-fault-level locations (≤6kA), S203M as the safe default for commercial and industrial applications (safe up to 10kA), and S203P for verified high-fault-level main distribution board locations (above 10kA).

Q: Which ABB 3P MCB should I specify for a 7.5kW three-phase DOL motor at 400V?

For a 7.5kW three-phase DOL motor at 400V, the standard ABB MCB 3 Pole specification is the ABB S203M-D32 (3-pole, D curve, 32A, 10kA). The 32A rating matches the motor feeder cable ampacity for a 7.5kW DOL motor (FLC approximately 16–17A at 400V, with the 32A cable and MCB providing the required short-circuit protection margin and the D curve accommodating the DOL starting inrush). The S203M is specified for the 10kA breaking capacity safe-default margin. The ABB S203M-D32 provides short-circuit protection for the motor feeder cable only — a thermal overload relay in the DOL starter set to the motor FLC (approximately 16–17A from the nameplate) provides motor winding overload protection. Contact ElectriHub to verify the cable rating and MCB selection for your specific motor installation.

Q: Can I use an ABB 3P MCB as the incomer for a three-phase distribution board in India?

Yes — the ABB MCB 3 Pole is the correct and standard incomer device for three-phase distribution boards in Indian commercial and industrial installations on TN-C-S (PME) supplies. The 3-pole incomer MCB should be sized to the distribution board's maximum demand current and selected for the breaking capacity matching the verified or assumed PSCC at the board incomer terminals — S203M (10kA) as the safe default, S203P (25kA) where PSCC exceeds 10kA. A lockable rotary handle (RHD) should be fitted to the incomer ABB 3P MCB for LOTO isolation capability. For TN-S or TT system distribution boards — or for generator and ATS panel incomer circuits — a 4-pole ABB MCB is required instead of a 3-pole.

Q: Do you supply ABB 3P MCB accessories — shunt releases, auxiliary contacts, and rotary handles?

Yes. ElectriHub supplies the complete ABB System pro M compact accessory range compatible with the ABB 3 Pole MCB — including OF auxiliary contacts (S2C-A1 / S2C-AL2) for remote status monitoring, SH shunt releases (S2C-SH230AC / S2C-SH24DC) for remote trip from fire alarm panels and ATS controllers, UVR undervoltage releases (S2C-UA230AC / S2C-UA24DC) for generator incomer anti-restart protection, lockable rotary handle kits (RHD) for LOTO isolation, padlock kits, 3-pole comb busbars for three-phase board assembly, and terminal covers for IP compliance. All System pro M compact accessories are snap-on compatible with S200, S200M, and S200P series ABB 3P MCBs across all current ratings. Contact ElectriHub with your accessory requirements for pricing and availability.

Q: Do you ship ABB MCB 3 Pole internationally?

Yes. ElectriHub ships the complete ABB MCB 3 Pole range — all series (S200, S200M, S200P), all current ratings, all trip curves, and all breaking capacities — to customers worldwide. We provide complete export documentation including commercial invoices, packing lists, certificates of origin, and MSDS where required. Contact our team with your ABB 3P MCB part numbers (e.g., S203M-C32, S203M-D32, S203P-C63), quantities, and delivery destination for a fast shipping quotation and confirmed lead times for your distribution board or MCC project.
